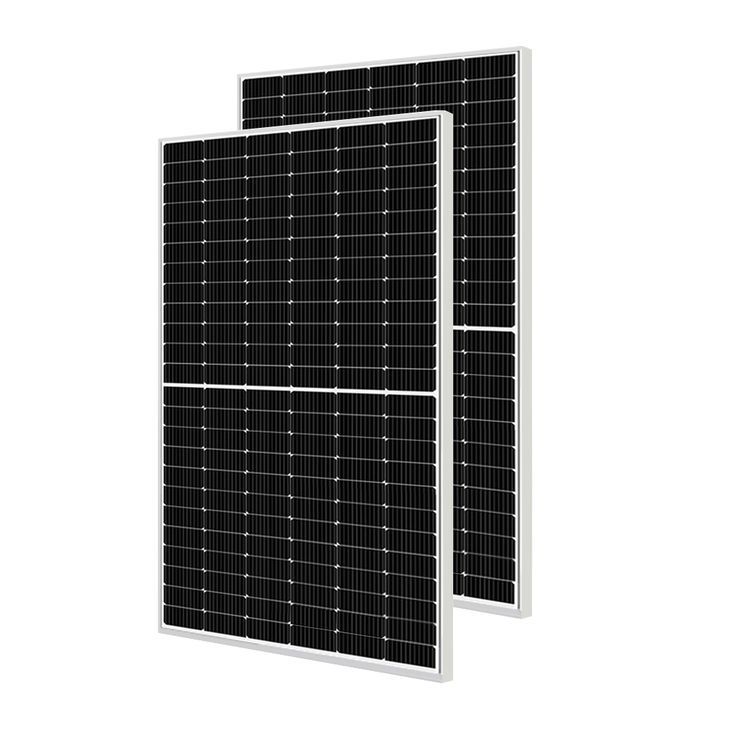

650W Solar Panel

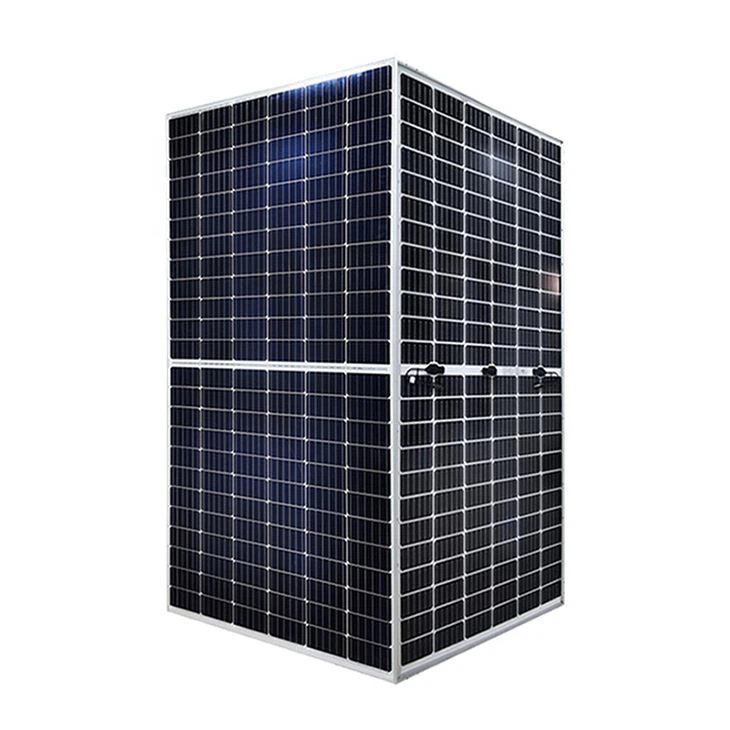

The 650W solar panel offers exceptional power output for utility-scale projects. Featuring advanced bifacial monocrystalline technology and high-density interconnect, it maximizes energy harvest even in low-light conditions. Engineered for durability and performance, this panel is perfect for large-scale energy production with reduced balance-of-system costs.
| Table 2-1: Product Specifications | Model: SP650M |
|---|---|
| Electrical Characteristics | |
| Rated Power (Pmax) | 650W |
| Open Circuit Voltage (Voc) | 52.1V |
| Short Circuit Current (Isc) | 14.80A |
| Max Power Voltage (Vmp) | 43.3V |
| Max Power Current (Imp) | 15.01A |
| Module Efficiency | 22.3% |
| Mechanical Data | |
| Dimensions | 2384 x 1303 x 35 mm |
| Weight | 32.5 kg |
| Frame | Anodized Aluminum Alloy |
| Glass | 3.2mm Tempered Glass |
| Connector | MC4 Compatible |
