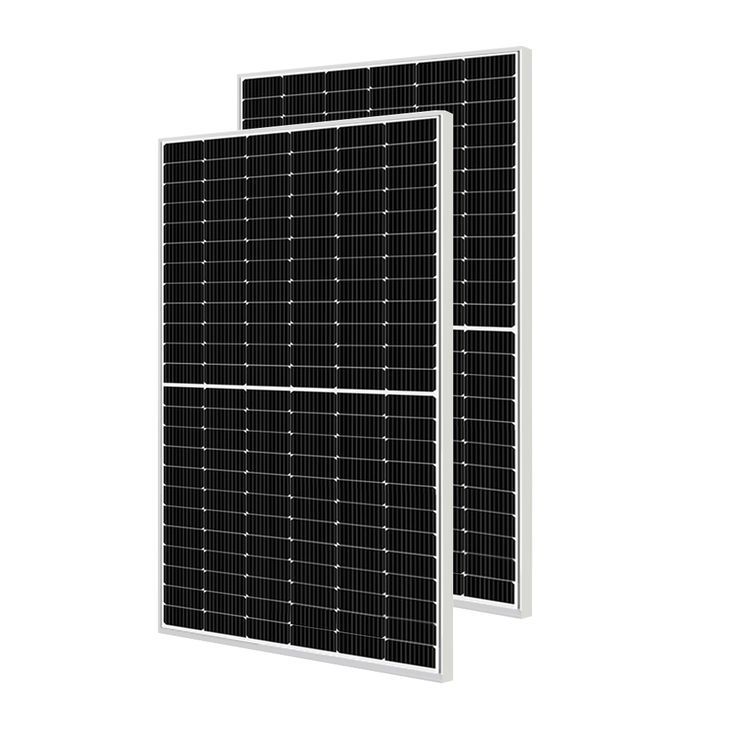

450W Solar Panel
The 450W solar panel is engineered for high performance and durability. It utilizes advanced monocrystalline PERC technology to maximize energy output and efficiency, making it ideal for both residential and commercial solar systems. With high conversion efficiency and enhanced resistance to PID and harsh weather, this panel ensures reliable power generation over its long service life.
| Table 2-1: Product Specifications | Model: SP450M |
|---|---|
| Electrical Characteristics | |
| Rated Power (Pmax) | 450W |
| Open Circuit Voltage (Voc) | 49.6V |
| Short Circuit Current (Isc) | 11.20A |
| Max Power Voltage (Vmp) | 41.8V |
| Max Power Current (Imp) | 10.77A |
| Module Efficiency | 20.7% |
| Mechanical Data | |
| Dimensions | 2108 x 1048 x 35 mm |
| Weight | 23.5 kg |
| Frame | Anodized Aluminum Alloy |
| Glass | 3.2mm Tempered Glass |
| Connector | MC4 Compatible |
