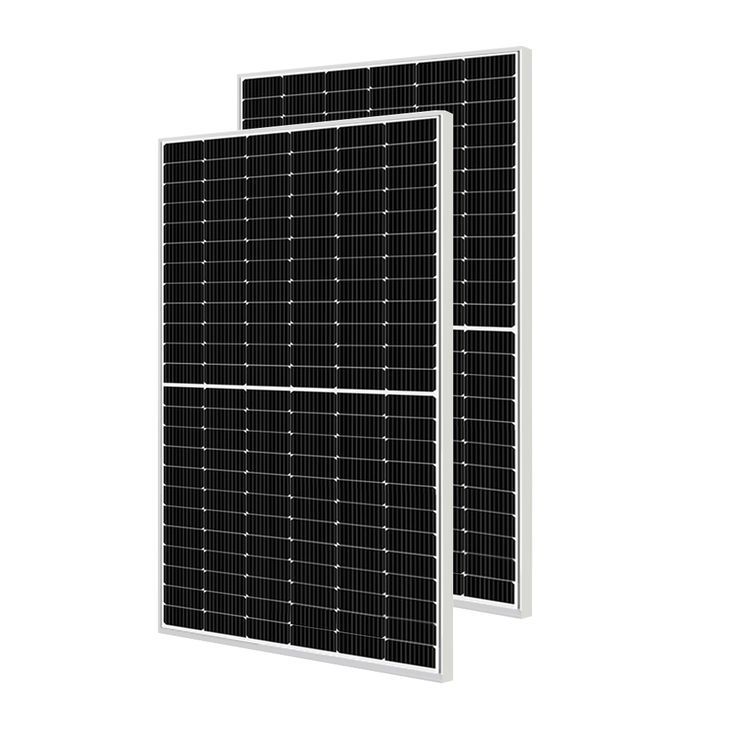

300W Solar Panel
The 300W solar panel is designed to deliver high-efficiency power output for residential and commercial use. Built with advanced monocrystalline technology, it offers excellent performance even in low-light conditions. The panel is ideal for off-grid and grid-tied applications, and it’s constructed with durable materials that resist harsh weather, ensuring long-term reliability and energy savings.
| Table 2-1: Product Specifications | Model: SP300M |
|---|---|
| Electrical Characteristics | |
| Rated Power (Pmax) | 300W |
| Open Circuit Voltage (Voc) | 40.2V |
| Short Circuit Current (Isc) | 9.50A |
| Max Power Voltage (Vmp) | 33.5V |
| Max Power Current (Imp) | 8.96A |
| Module Efficiency | 18.5% |
| Mechanical Data | |
| Dimensions | 1640 x 992 x 35 mm |
| Weight | 18.5 kg |
| Frame | Anodized Aluminum Alloy |
| Glass | 3.2mm Tempered Glass |
| Connector | MC4 Compatible |
