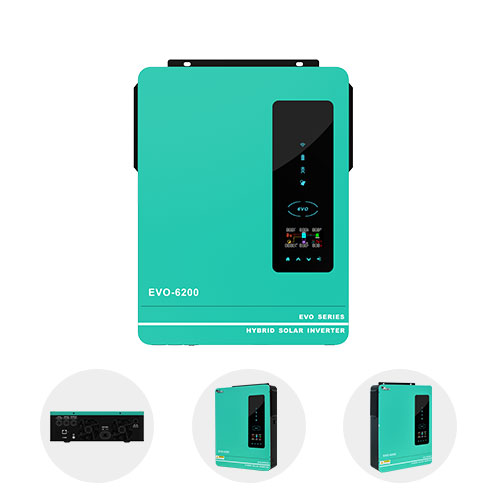

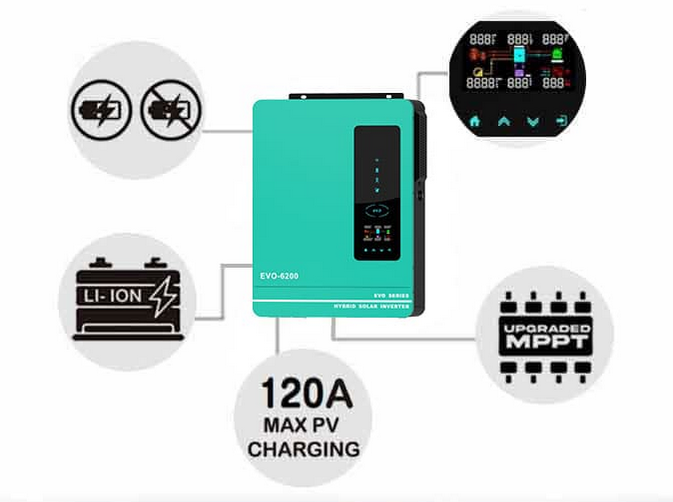

The 6.2KVA Hybrid Inverter seamlessly combines solar power and grid electricity to deliver reliable, efficient, and uninterrupted energy. Designed for versatility and high performance, it intelligently switches between power sources to maximize energy savings while ensuring stable power supply. Its advanced hybrid technology supports both battery storage and direct solar input, offering optimal energy management for homes and businesses alike. With robust build quality and user-friendly controls, this inverter is ideal for reducing energy costs, enhancing sustainability, and maintaining power continuity during outages. Experience the perfect blend of innovation, efficiency, and durability with the 6.2KVA Hybrid Inverter.
Model | SCI-EVO-6200 |
---|---|
Rated Power | 6200W |
Maximum PV Input Power | 6500W |
GRID-TIED OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
MPPT DC Voltage Range | 60-450VDC |
Number of MPPT Trackers/Maximum Input Current | 22A |
GRID OUTPUT (AC) | |
Nominal AC Output Voltage | 220/230/240VAC |
AC Output Voltage Range | 195.5-253VAC |
Nominal AC Output Current | 27.0A |
Power Factor | >0.99 |
Feed-in Grid Frequency Range | 49-51 ± 1Hz / 59-61±1Hz |
EFFICIENCY | |
Maximum Conversion Efficiency (Solar to AC) | 98% |
TWO LOADS OUTPUT POWER | |
Full Load | 6200W |
Maximum Main Load | 6200W |
Maximum Secondary Load (Battery mode) | 2067W |
Main Load Cut Off Voltage | 44VDC |
Main Load Return Voltage | 52VDC |
OFF-GRID OPERATION | |
AC Start-up Voltage / Auto Restart Voltage | 120-140VAC / 180VAC |
Acceptable AC Input Voltage Range | 90-280VAC or 170-280VAC |
Maximum AC Input Current | 40A |
Norminal Operating Frequency | 50/60Hz |
Surge Power | 12400W |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Waveform | Pure Sine Wave |
Efficiency (DC to AC) | 94% |
BATTERY AND CHARGER | |
Nominal DC Voltage | 48VDC |
Maximum Charging Current (Solar to AC) | 120A |
Maximum AC Charging Current | 100A |
GENERAL | |
Dimension (D x W x H) | 450*350*110mm |
Net Weight (kgs) | 10kg |
Communication Interface | WIFI |
Humidity | 5-95% (Non-condensing) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |
