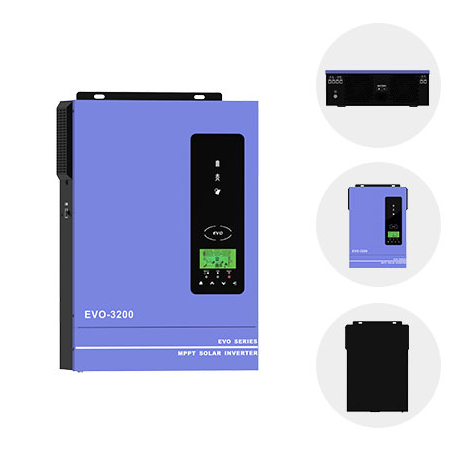

3.2KVA Hybrid Inverter

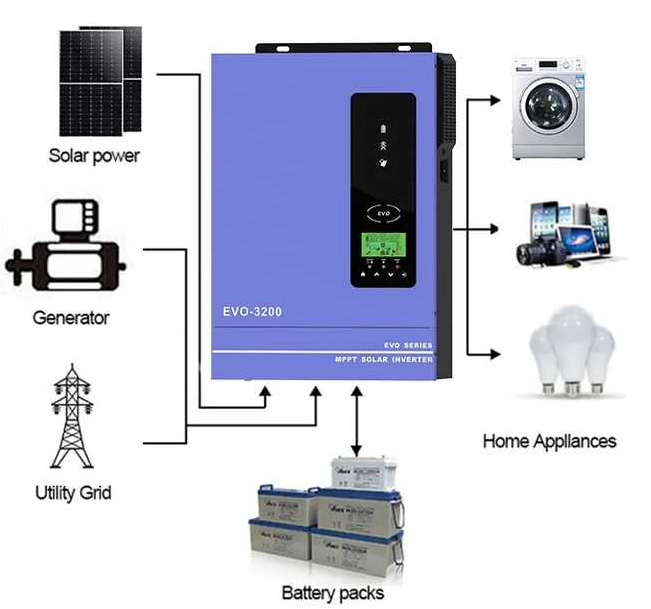

The 3.2KVA Hybrid Inverter is a versatile and efficient power solution that seamlessly combines solar energy with grid and battery power. Designed to deliver reliable, uninterrupted electricity, it optimizes energy use by intelligently switching between sources, reducing reliance on the grid while maximizing solar savings. This inverter supports high power output for homes or small businesses, ensuring smooth operation of multiple appliances even during outages. Its advanced hybrid technology enhances energy management, promotes sustainability, and provides a cost-effective way to harness renewable energy with robust performance and user-friendly controls.
| Model | SCI-EVO-3200 |
|---|---|
| Rated Power | 3200VA / 3000W |
| AC INPUT | |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| AC OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 6400VA |
| Efficiency (Peak) PV to Inverter | 98% |
| Efficiency (Peak) Battery to Inverter | 94% |
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY AND CHARGER | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 3000W |
| MPPT Range @ Operating Voltage | 30-400VDC |
| Maximum PV Array Open Circuit Voltage | 400VDC |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 390*270*100mm |
| Net Weight (kg) | 5.4 |
| INTERFACE | |
| Communication Interface | WIFI |
| OPERATING ENVIROMENT | |
| Humidity | 5-95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C - 50°C |
| Storage Temperature | -15°C - 60°C |
