2KVA Hybrid Inverter

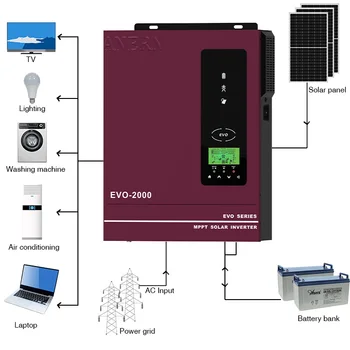

The 2KVA Hybrid Inverter seamlessly blends advanced technology with reliable performance, offering a versatile power solution for both grid-connected and off-grid environments. Designed to intelligently manage energy sources, it efficiently switches between solar, battery, and utility power to ensure uninterrupted electricity supply. Its robust build supports a wide range of household and small business appliances, delivering stable and clean power output. With smart energy management, high conversion efficiency, and user-friendly controls, this inverter maximizes energy savings while providing peace of mind during outages or fluctuating grid conditions.
| Model | SCI-EVO-2000 |
|---|---|
| Rated Power | 2000VA / 16000W |
| AC INPUT | |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| AC OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 400VA |
| Efficiency (Peak) PV to Inverter | 98% |
| Efficiency (Peak) Battery to Inverter | 94% |
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY AND CHARGER | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 16VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 2000W |
| MPPT Range @ Operating Voltage | 30-400VDC |
| Maximum PV Array Open Circuit Voltage | 400VDC |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 360*270*100mm |
| Net Weight (kg) | 4.4 |
| INTERFACE | |
| Communication Interface | WIFI |
| OPERATING ENVIROMENT | |
| Humidity | 5-95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C - 50°C |
| Storage Temperature | -15°C - 60°C |
