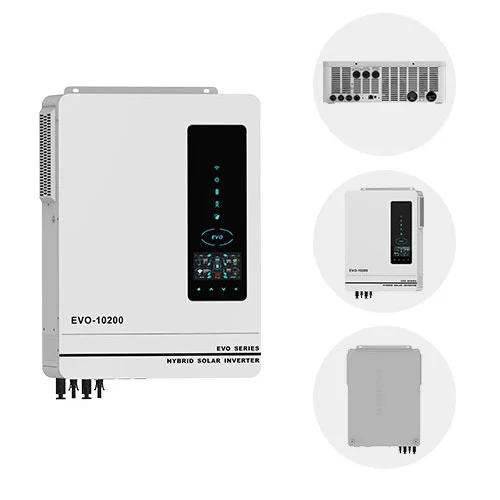

10.2KVA Hybrid Inverter

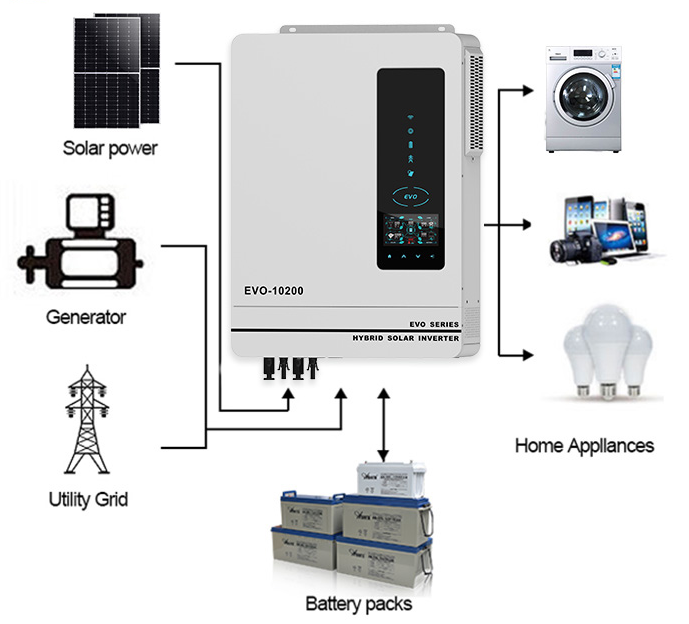

The 10.2KVA Hybrid Inverter is a high-capacity, intelligent energy solution designed to deliver reliable and uninterrupted power for both residential and commercial use. It combines the functionality of a solar inverter and a battery inverter, enabling seamless integration with solar panels, utility grid, and battery storage. This inverter ensures efficient energy management by prioritizing solar power usage, intelligently switching between power sources, and offering backup support during outages. Its advanced features include automatic voltage regulation, smart load sharing, silent operation, and real-time system monitoring—making it ideal for areas with unstable grid supply or for users aiming to optimize energy efficiency and reduce electricity costs.
| Model | SCI-EVO-10200 |
|---|---|
| Rated Power | 10200W |
| Maximum PV Input Power | 10800W |
| GRID-TIED OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT DC Voltage Range | 90-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 2 / 18A |
| GRID OUTPUT (AC) | |
| Nominal AC Output Voltage | 220/230/240VAC |
| AC Output Voltage Range | 195.5-253VAC |
| Nominal AC Output Current | 44.3A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49-51 ± 1Hz / 59-61±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency (Solar to AC) | 98% |
| TWO LOADS OUTPUT POWER | |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Maximum Secondary Load (Battery mode) | 3400W |
| Main Load Cut Off Voltage | 44VDC |
| Main Load Return Voltage | 48VDC |
| OFF-GRID OPERATION | |
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC / 180VAC |
| Acceptable AC Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 50A |
| Norminal Operating Frequency | 50/60Hz |
| Surge Power | 20400W |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency (DC to AC) | 94% |
| BATTERY AND CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Charging Current (Solar to AC) | 160A |
| Maximum AC Charging Current | 160A |
| GENERAL | |
| Dimension (D x W x H) | 530*390*130mm |
| Net Weight (kgs) | 14.5kg |
| Communication Interface | WIFI |
| Humidity | 5-95% (Non-condensing) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
